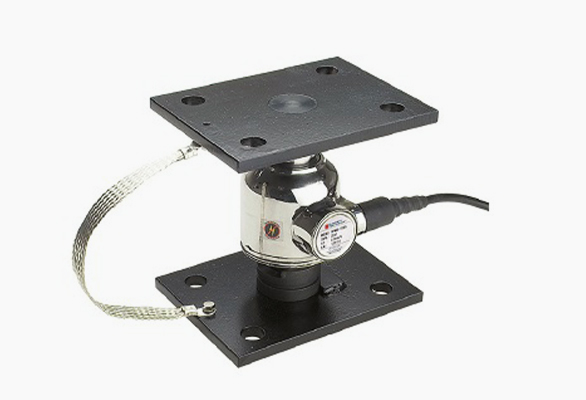

제품특징
- Robust design and easy installantion
- Storong against shock or side force
- Surge portected
- Rotation protected
- Protection class IP68
- Material
- Stainless steel
- Cable
- Braided shiild 4wire round cable width PVC - jacket
| Max. Capacity | tf | 10, 25, 30 tf | |
|---|---|---|---|
| Rated output | mV/V | 2.0 ± 0.005 | |
| Zero balance | mV/V | 0.0 ± 0.03 | |
| Accuracy calss | D3 | C3 | |
| Combined error | %RO | 0.02 | 0.02 |
| Repeatability | %RO | 0.03 | 0.01 |
| Creep (30min.) | %RO | 0.03 | 0.017 |
| Temperature effect on | |||
| Zero value | %RO/10℃ | 0.03 | 0.03 |
| Output value | %RO/10℃ | 0.03 | 0.03 |
| Excitation | |||
| Recommended | V | 10 | |
| Maximum | V | 15 | |
| Resisitance | |||
| Input | Ω | 350 ± 3.5 | |
| Ｏutput | Ω | 350 ± 3.5 | |
| Insulation | MΩ | ＞ 2,000 | |
| Compensated temp. range | ℃ | -10 ~ +40 | |
| Operating temp. range | ℃ | -20 ~ +80 | |
* 표를 가로로 드래그 해서 확인하세요.
