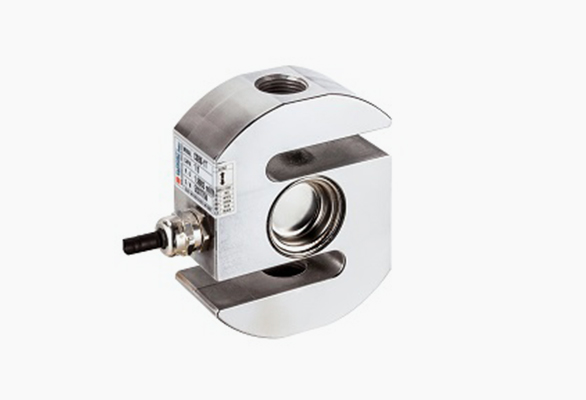

    S - 빔 타입

    SSBS

    제품특징

    • Fully environmental protection IP67
    • Tension or compression applications
    • Suitable for hanging scales
    Material
    Stainless Stell
    Cable
    Braided shield 4-wire round cable width PVC-jacket
    Capacity A B C D E
    500kgf 90 70 90 32 M12 X 1.75
    1tf 92 70 90 32 M18 X 1.5
    2tf
    3tf 130 100 120 45 M24 X 2.0
    5tf

    사양

    Max. Capacity kgf, tf 500 kgf, 1,2,3,5 tf
    Rated output mV/V 2.0 ± 0.005
    Zero balance mV/V 0 ± 0.003
    Combined error %RO 0.03
    Repeatability %RO 0.01
    Creep (30min.) %RO 0.03
    Temperature effect on
    Zero value %RO/10℃ 0.028
    Output value %RO/10℃ 0.014
    Excitation
    Recommended V 10
    Maximum V 15
    Resisitance
    Input Ω 430 ± 20
    Output Ω 350 ± 3.5
    Insulation MΩ ＞ 2,000 @ 50V DC
    Compensated temp. range ℃ -10 ~ +40
    Operating temp. range ℃ -20 ~ +80

    * 표를 가로로 드래그 해서 확인하세요.

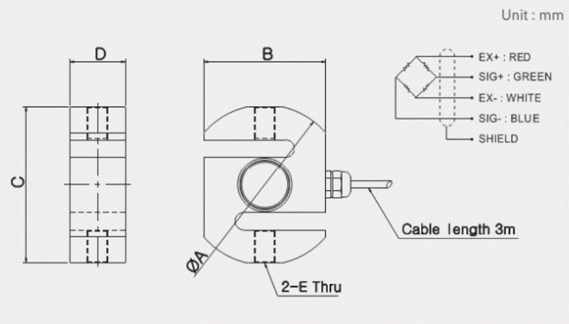

    제품 치수
