미건에스티

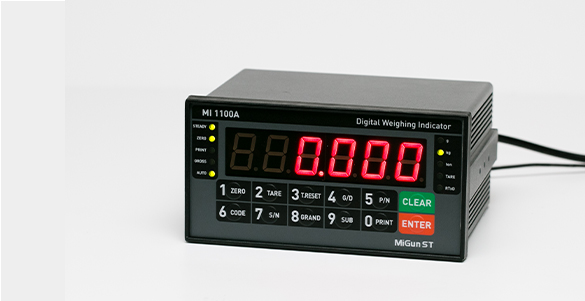

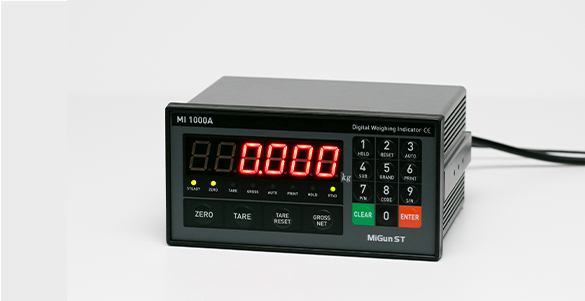

MI 1000 시리즈 (중량 지시형)

Platform Scale, Truck Scale, Animal Scale Application
RS-232C Serial Interface(Current Loop) 1 Ports Standard Built in
Power Supply : MI-1000A SMPS Free Voltage (AC 85V-269V) / MI-1100A Trans AC 110V-220V (DIP S/W Selectable)
Current Loop & Print 1 Port Standard Built in
RS-232C Serial Interface(Current Loop) 1 Ports Standard Built in
Option : RS422/485, 0-10V/4-20mA (Analogue Output), BCD IN/OUT (only MI-1000A)

Input Sensitivity	0.2 ㎶/Digit
Load Cell Excitation	DC 5V
Max.Signal Input Voltage	Max. 32mV
Temperature Coefficient	[Zero] ± 20PPM/℃ [Span] ± 20PPM/℃
Input Noise	± 0.6 ㎶ P.P
Input Impedance	Over 10mΩ
A/D Conversion Method	Sigma-Delta
A/D Resolution(Internet)	520,000 Count(18bit)
A/D Sampling Rate	Max. 200 times/sec
Non-Linerity	0.01% FS
Display Resolution(External)	1/30,000

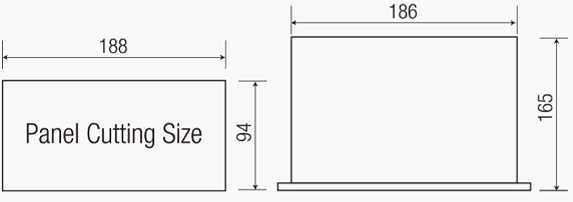

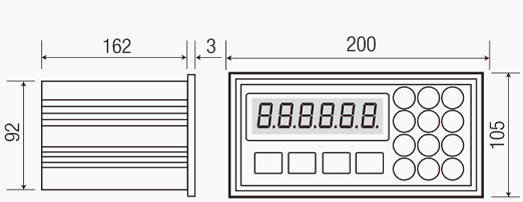

Unit : mm
