    팬케이크 & 케니스탈 타입

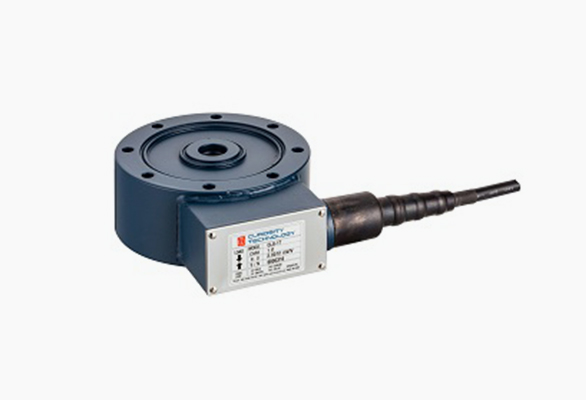

    SLS 500

    제품특징

    • Fully environmental protection, IP67
    • High reliable against & side force
    Material
    Paint Stainless Stell
    Cable
    Braided shield 4-wire round cable width PVC-jacket
    Capacity A B C D E F G H I J
    0.5tf 112 46 4 1 38 68 139.5 8-∅6.6 97.2 M16 X 2.0
    1tf
    2tf
    3tf
    5tf 120 46 4 1 38 68 149.5 8-∅9 103.2 M18 X 1.5
    10/15tf 138 60 11 1 38 68 167.5 8-∅11 117.6 M24 X 2.0
    20/30tf 184 80 21 1 38 68 213.5 8-∅14 157.6 M39 X 2.0
    50tf 200 60 11 1 38 68 229.5 8-∅14.3 170 M45 X 3.0
    100tf 278 90 26 1 38 68 307.5 16-∅16.3 229 M70 X 3.0
    200tf 355 108 35 1 38 68 384.5 12-∅26 298 M90 X 3.0

    사양

    Max. Capacity kgf 0.5, 1, 2, 3, 5, 10, 15, 20, 30 tf 50, 100, 200 tf
    Rated output mV/V 2.0 ± 0.005
    Zero balance mV/V 0 ± 0.2
    Accuracy class mV/V A B C
    Combined error %RO 0.02 0.05 0.1
    Repeatability %RO 0.01 0.02 0.1
    Creep (30min.) %RO 0.03 0.03 0.03
    Temperature effect on
    Zero value %RO/10℃ 0.03 0.03 0.03
    Output value %RO/10℃ 0.03 0.03 0.03
    Excitation
    Recommended V 10
    Maximum V 15
    Resisitance
    Input Ω 350 ± 3.5
    Output Ω 350 ± 3.5
    Insulation MΩ ＞ 2,000 @ 50V DC
    Compensated temp. range ℃ -10 ~ +40
    Operating temp. range ℃ -20 ~ +80

    * 표를 가로로 드래그 해서 확인하세요.

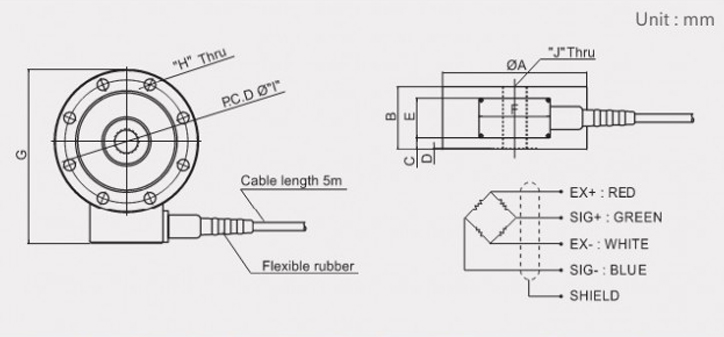

    제품 치수
