    • 제품소개

    MI 2000 시리즈 (중량 4단 제어용)

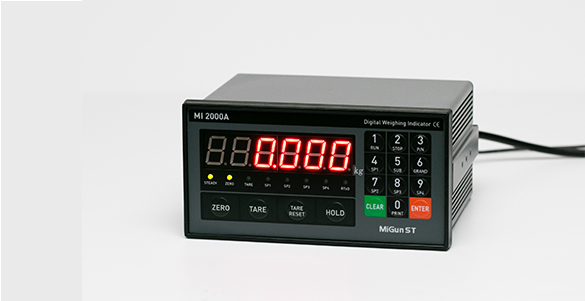

    • MI 2000A

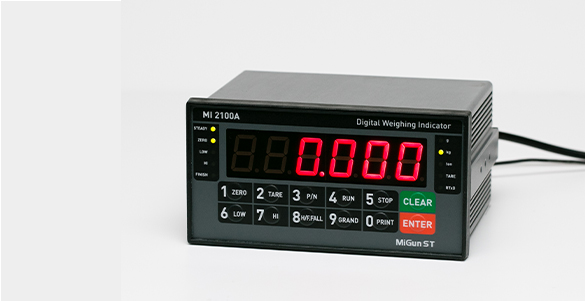

    • MI 2100A

    제품 특징

    • Multi-Futional Control Purpose Indicator
    • Limit/Packer/Checker/Testing Weighing Modes
    • MI-2000A 6pcs Relay Built in - 4set Point
    • MI-2100A 4pcs Relay Built in - 2set Point
    • Option : RS422/485, 0-10V/4-20mA (Analogue Output), BCD IN/OUT (only MI-2000A)

    relay mode (MI-2000A)

    OUT1 OUT2 OUT3 OUT4 OUT5 OUT6
    Limit
    (“A”Dry)    		 SP1 SP2 SP3 SP4 SP5 SP6
    Packer
    (“B”Dry)    		 SP1 SP2 SP3 SP4 SP5 SP6
    Checker
    (Stable Mode)    		 SP1 SP2 SP3 SP4 SP5 SP6
    Checker
    (Range Mode)    		 SP1 SP1 < SP2 SP2 < SP3 SP3 < SP4 SP4 < SP5 SP5 < SP6

    * 표를 가로로 드래그 해서 확인하세요.

    relay mode (MI-2100A)

    OUT1 OUT2 OUT3 OUT4
    Limit
    (“A”Dry)    		 SP1(Low) SP2(High) Finish Zero
    Packer
    (“B”Dry)    		 SP1(Low) SP2(High) NC NC

    치수 및 패널 절단 크기

    Unit : mm

    시스템 어플리케이션

    • Packer

    • Checker

    • Testing
