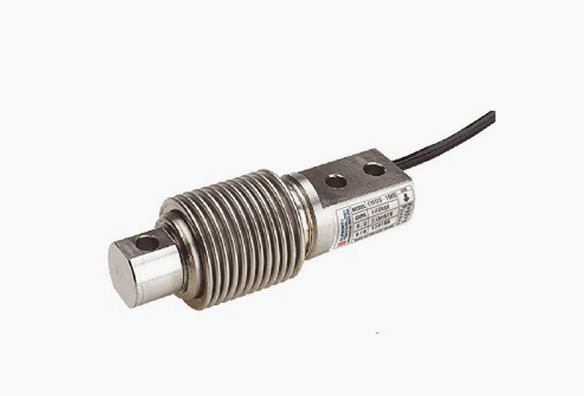

제품특징
- All stainless stell construction
- Protection class IP68
- Material
- Stainless Stell
- Cable
- Braided shield 4-wire round cable width PVC-jacket

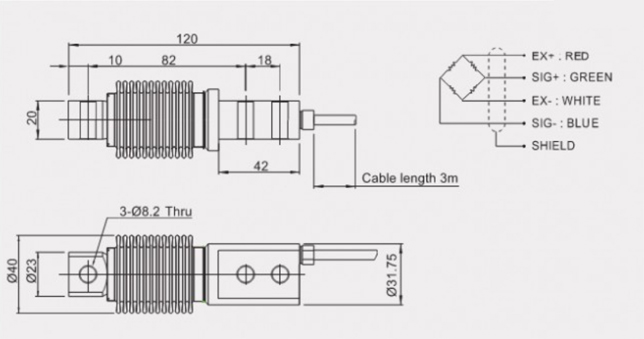

- Mounting
- - Socket-head cap screw
- - M8 X 1.25 (10.9)
- - Tightening torque : 29Nm
| Max. Capacity | kgf | 10, 20. 50, 100, 200, 500 kgf |
|---|---|---|
| Rated output | mV/V | 2.0 ± 0.005 |
| Zero balance | mV/V | 0 ± 0.2 |
| Combined error | %RO | 0.03 |
| Repeatability | %RO | 0.01 |
| Creep (30min.) | %RO | 0.03 |
| Temperature effect on | ||
| Zero value | %RO/10℃ | 0.028 |
| Output value | %RO/10℃ | 0.015 |
| Excitation | ||
| Recommended | V | 10 |
| Maximum | V | 15 |
| Resisitance | ||
| Input | Ω | 400 ± 50 |
| Output | Ω | 350 ± 3.5 |
| Insulation | MΩ | ＞ 2,000 @ 50V DC |
| Compensated temp. range | ℃ | -10 ~ +40 |
| Operating temp. range | ℃ | -20 ~ +80 |
