    MI 3000 시리즈 (고급 제어용)

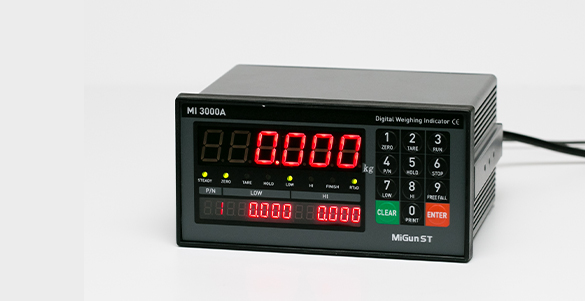

    • MI 3000A

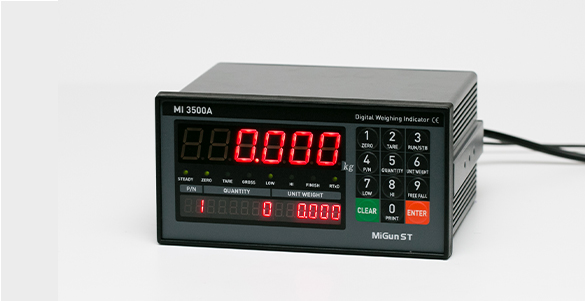

    • MI 3500A

    제품 특징 (MI 3000A)

    • 2 Step Multi-Functional Control Purpose Indicator
    • Limit/Packer/Checker/Testing Weighing Modes
    • 6psc Control Realy built in - 2 set Point
    • Option : Rs422/485, Wireless COmmunication Card with Remote Display / 0-10V/4-20mA (Analogue Output), BCD IN/OUT

    제품 특징 (MI 3500A)

    • Quantity Control Application
    • Limit/Packer/Checker/Testing Weighing Modes
    • 6psc Control Realy built in - 2 set Point
    • Option : Rs422/485, Wireless COmmunication Card with Remote Display / 0-10V/4-20mA (Analogue Output), BCD IN/OUT

    relay mode (MI-3000A)

    OUT1 OUT2 OUT3 OUT4 OUT5 OUT6
    Limit
    (“A”Dry)    		 SP1 SP2 Finish Low N.G High N.G Zero
    Packer
    (“B”Dry)    		 SP1 SP2 Finish Low N.G High N.G Zero
    Checker Low High OK Low N.G High N.G Zero
    Testing Low High OK Low N.G High N.G Zero
    Checker
    (Range Mode)    		 SP1 SP1 < SP2 SP2 < SP3 SP3 < SP4 SP4 < SP5 SP5 < SP6

    * 표를 가로로 드래그 해서 확인하세요.

    relay mode (MI-3500A)

    OUT1 OUT2 OUT3 OUT4 OUT5 OUT6
    Limit
    (“A”Dry)    		 SP1 SP2 Finish Low N.G High N.G Zero
    Packer
    (“B”Dry)    		 SP1 SP2 Finish Low N.G High N.G Zero
    Checker Low High OK Low N.G High N.G Zero

    * 표를 가로로 드래그 해서 확인하세요.

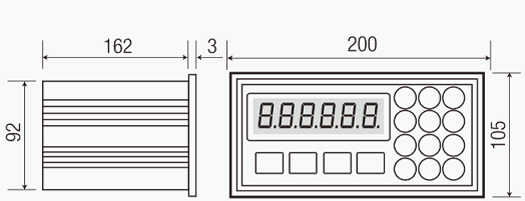

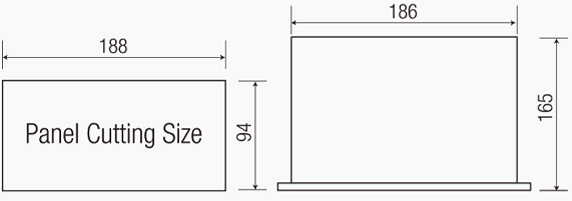

    치수 및 패널 절단 크기

    Unit : mm

    시스템 어플리케이션

    • Packer

    • Checker

    • Testing
